FCC RSE Peak Value Measurement

Directly measure the RSE peak value as described in Section 11.12.1, 6.4, 6.5 and 6.6 of ANSI C63.10-2020 American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices.

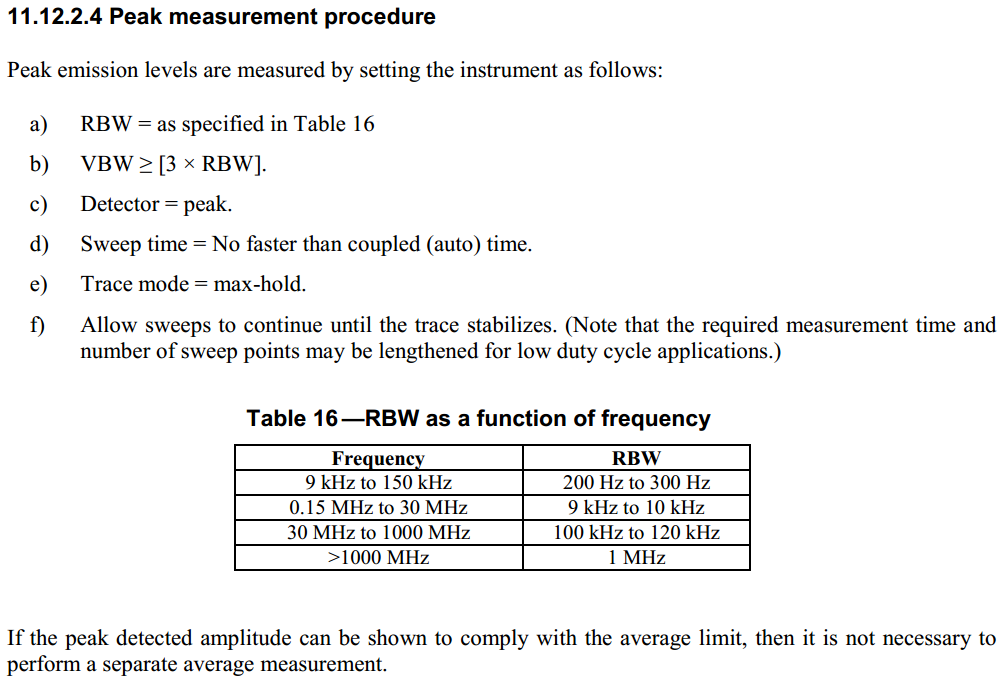

Detailed instrument settings are provided in Section 11.12.2.4, as shown below.
