Electrical Specifications
Symbol | Description | Min. | Typ. | Max. | Unit |
---|---|---|---|---|---|
fSCK |
I2S clock frequency |
3072 |
kHz |
||
tSUSDI |
Data input setup time (from SDI to SCK) |
20 |
ns |
||
tHDSDI |
Data input hold time (from SCK to SDI change) |
15 |
ns |
||
tVSDO |
Data output valid time (from SCK to SDO valid) |
20 |
ns |
||
DCSCK |
SCK Clock duty cycle |
45 |
55 |
% |

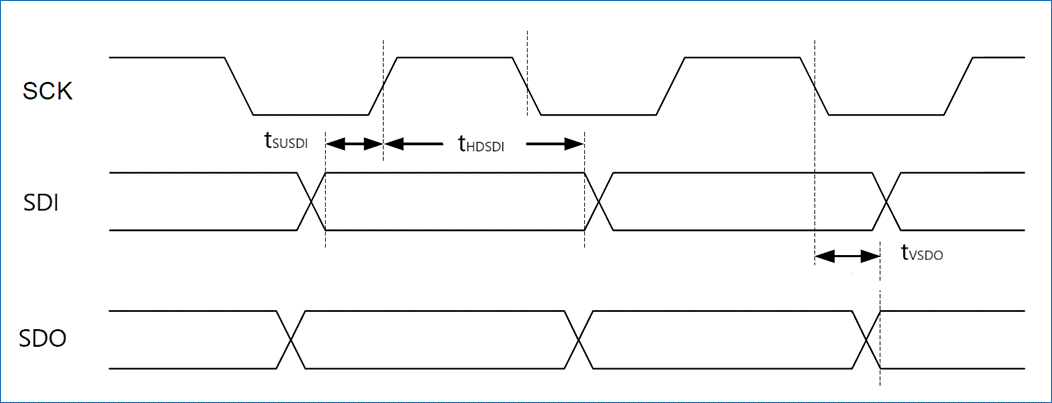

The I2S Timing Diagram is in 图 50:
