Documentation > GProgrammer User Manual/ Programming Flash with GProgrammer/ Chip Configuration/ Import and Export Copy URL

Import and Export

GProgrammer allows users to export all parameter data (Parameter Name, Description, Length, and Value) to a local JSON configuration file as well as import local JSON configuration files to GProgrammer.

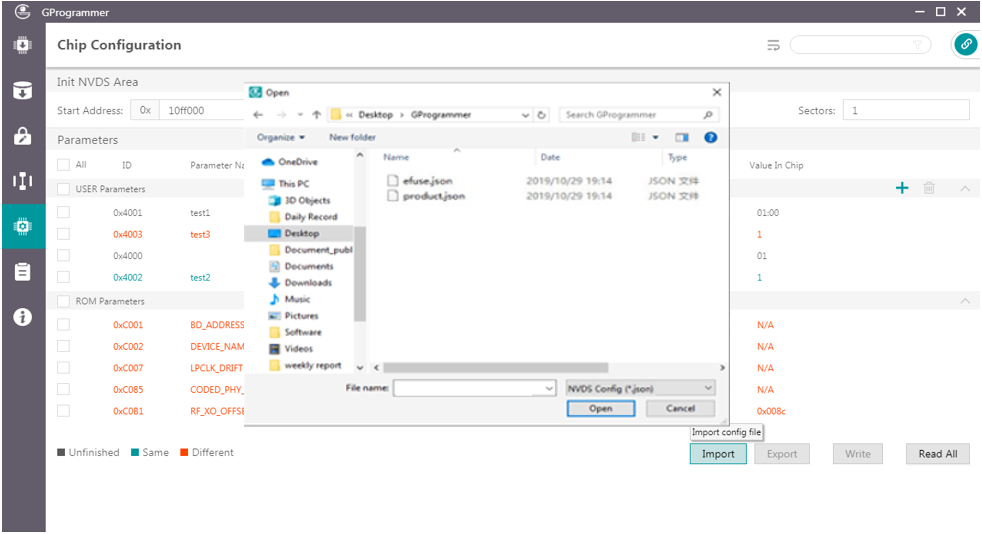

Figure 45 Importing local JSON configuration files to GProgrammer

Tip:

Parameters in the imported JSON files replace all those listed in the Parameters pane.
Export modified parameter data to a local JSON file to prevent repeated modification.
Export is unavailable when parameters in unfinished state exist.
All data displayed in the Chip Configuration interface can be exported by clicking Export.
